4 Types
Large Kynar® PVDF parts made without warping!
PVDF is a semicrystalline polymer that experiences warping when it transitions from a melt to a solid state. This stress is the result of crystallization and leads to dimensional distortion of the printed object and loss of adhesion to the build plate. Stress can be eliminated by annealing. But there is an easier way. Nile Polymers is pleased to introduce Fluorinar-C™ filament made with Kynar® PVDF. This filament completely eliminates warping in large PVDF 3D prints.
Available for the first time

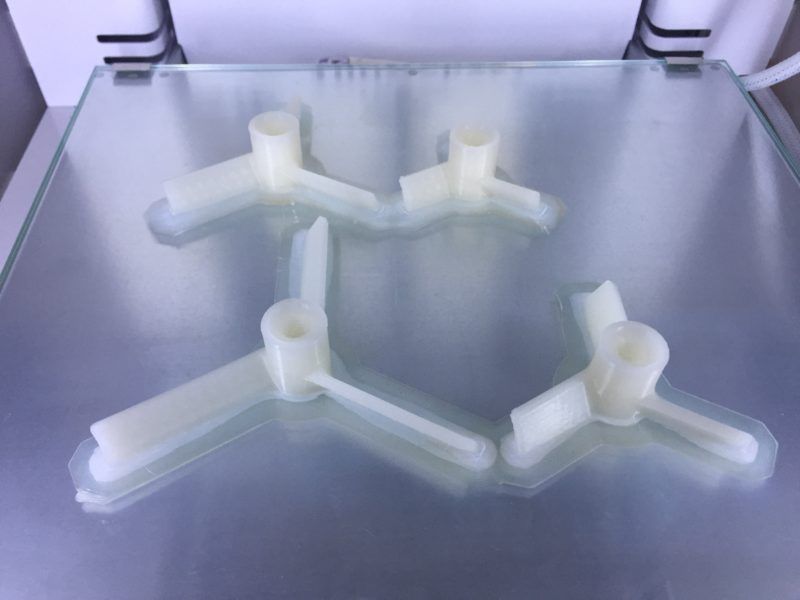

Now large parts can be printed without loss of print bed adhesion. The final print remains perfectly flat after completion and cooling. Before the existence of 3D printing, one-off parts were typically made by machining from solid stock. Fluorinar-C™ now gives you possibilities: you can either print the part or print solid stock and create the part by machining. Either way, Fluorinar-C™ PVDF filament gives you the choices needed to complete the job.

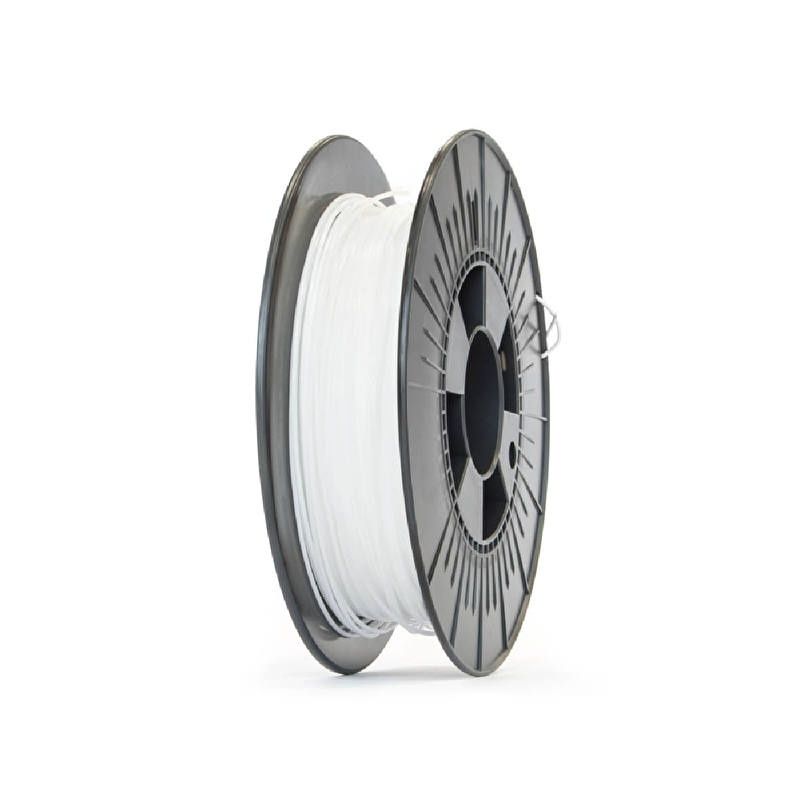

PVDF - C white 1kg € 209,-
PVDF - C black 1kg € 209,-
PVDF - ESD - Graphene black 1kg € 259,-
PVDF - H (monomere) 500grs € 145,-

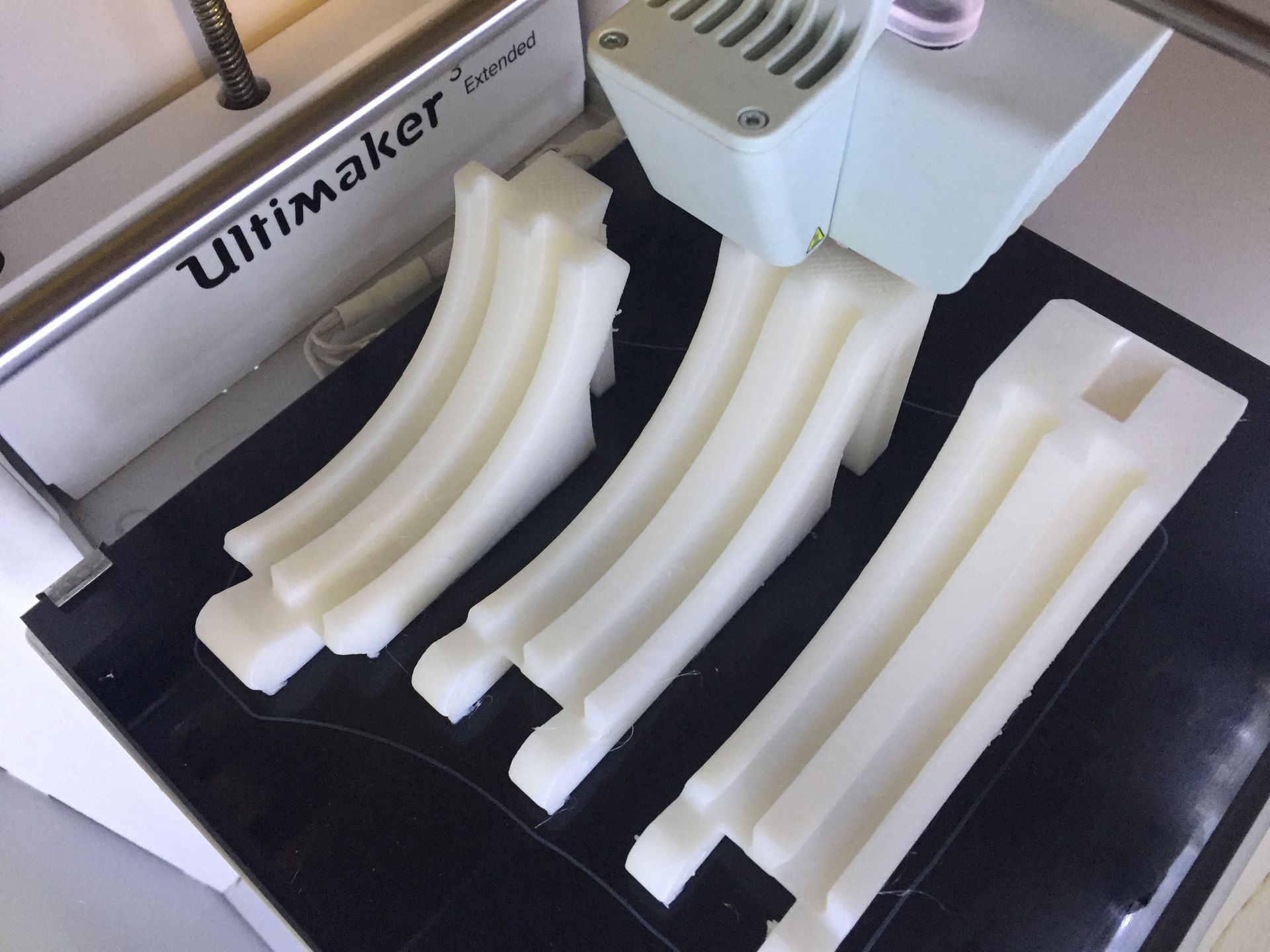

- Large PVDF 3D Prints: print sizes are only limited by machine print volume
- First print layer bonds to PVA-coated glass and remains perfectly flat without using brims or rafts
- Excellent build plate adhesion: no loss of part dimensions due to warping
- No lifting around sharp corners on the printed part
- Fully melt compatible with Fluorinar-H™ filament in multi-extrusion printers
- Rapid prototype development
- Small quantity part production
- Cost-effective part manufacturing compared to machining from solid stock
- CNC machining of printed part for tight tolerance requirements
- Optimal print settings can be achieved on all consumer-grade printers
- No off-gassing during printing due to PVDF melt stability
- Excellent corrosion resistance to most mineral and organic acids, aliphatic and aromatic hydrocarbons, alcohols, halogenated solvents, and oxidizing agents
- No loss of mechanical strength after long-term UV exposure
- 100% Kynar® and 100% PVDF
- Meets ISO-10993-5:2009 cytotoxicity standard for biocompatibility
Here you find the tech data
If you need more/other data or information on chemical resistance, please contacts us:
